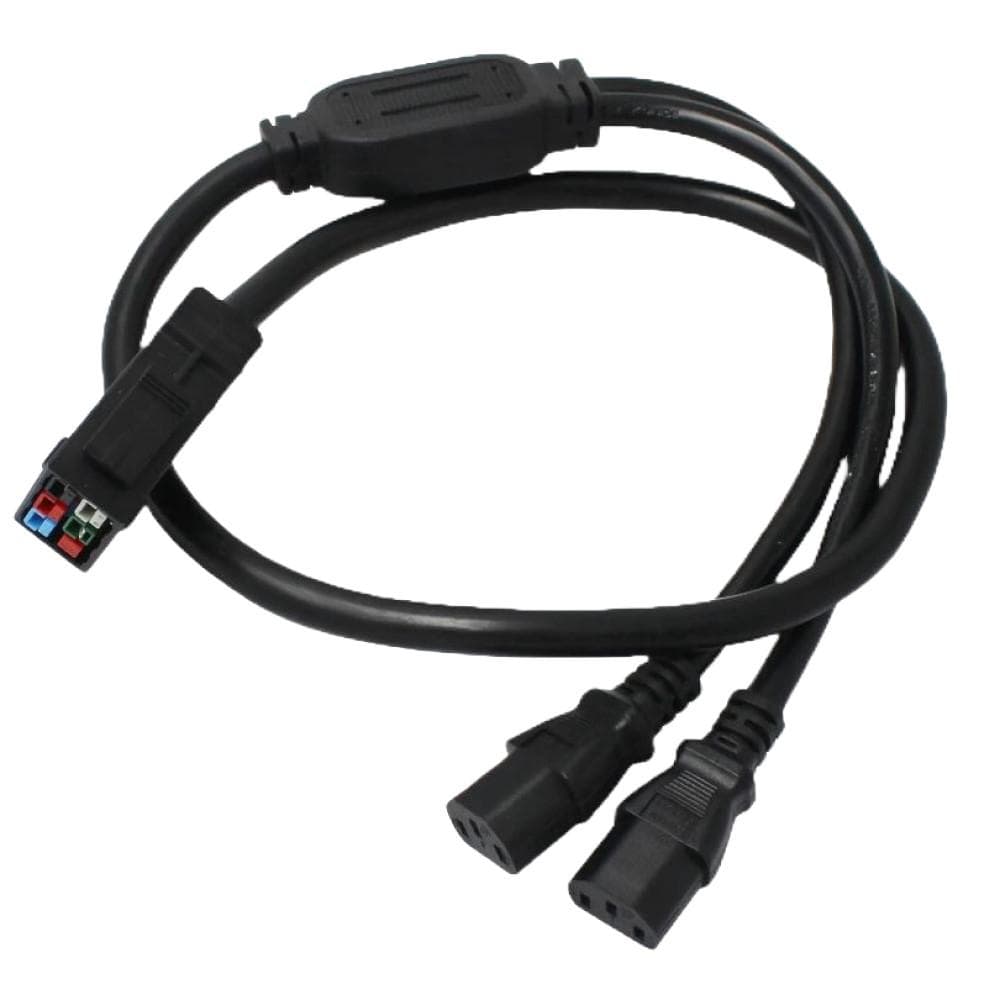

Picture of the model. The unit you receive may differ in appearance.
P33 (PA45) to dual IEC C13 Heavy Duty Power Cord, 12 AWG, 20A, 4ft
4 ft split power cord from an ANEN P33 (6-pin PA45) locking plug to two IEC C13 connectors, 12 AWG trunk and 14 AWG legs, for Antminer S19 series.
$28.49
Ships in 5–10 business days
Description
A split power cord that connects Bitmain Antminer S19-series miners to AntPDU units and other three-phase PDUs with ANEN PA45 outlets. A locking ANEN P33 (6-pin PA45) plug at the PDU end feeds a 2 ft trunk that divides into two 2 ft legs, each ending in an IEC C13 connector that plugs into the miner. The trunk and legs use different wire gauges.
Compatibility
- Antminer S19 series
- AntPDU and other three-phase PDUs with ANEN PA45 outlets
Specifications
- Connectors: ANEN P33 (6-pin PA45) to 2 × IEC C13
- Conductors: 12 AWG copper trunk, 14 AWG copper legs
- Current rating: 20 A
- Load: up to 4800 W
- Length: 4 ft overall (2 ft trunk plus two 2 ft legs)
- Jacket: SJT PVC, rated to 105 °C
- Certification: UL
