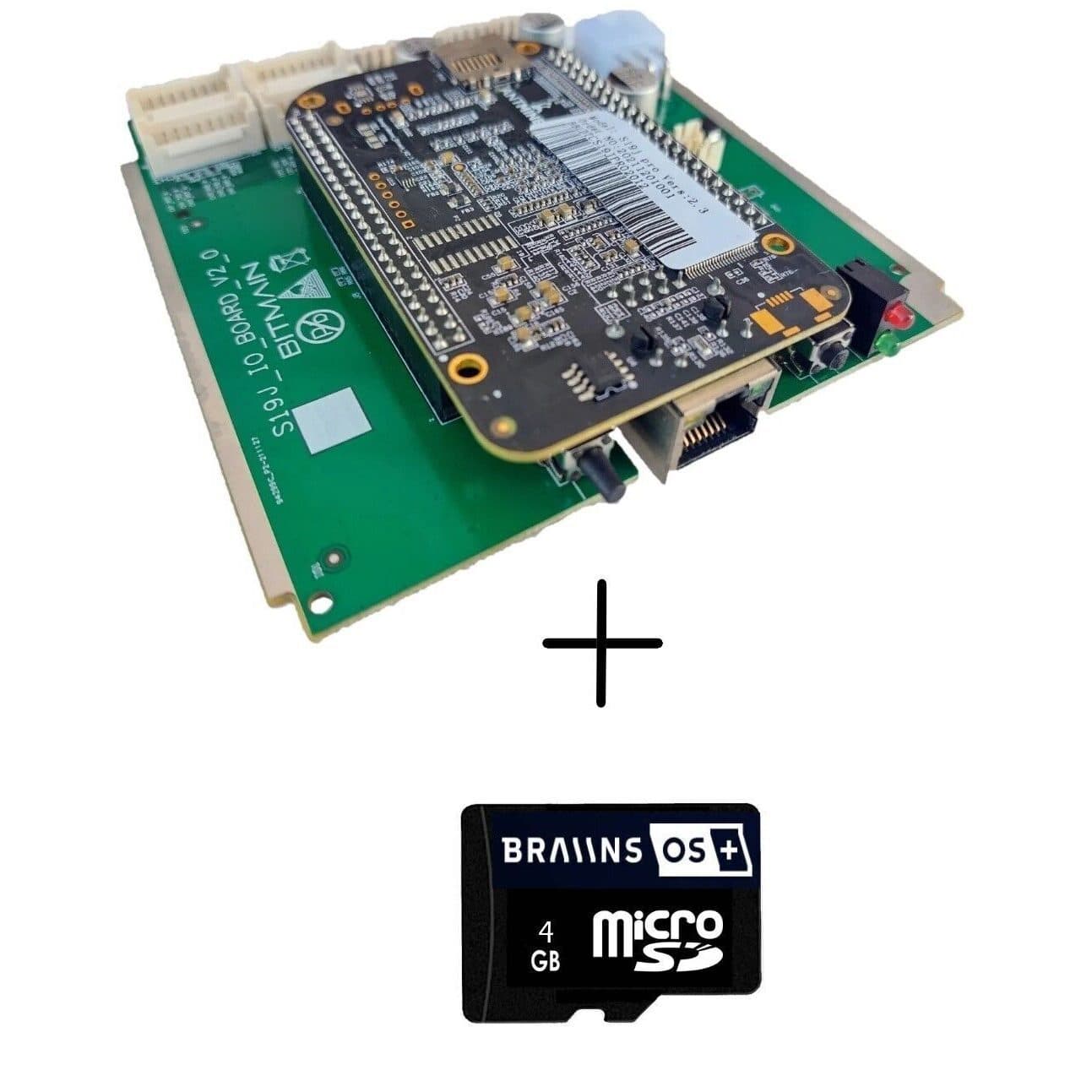

Bitmain Antminer S19j/S19J Pro BeagleBone Control Board
- Manufacturer
- Bitmain
BeagleBone-type Antminer control board for S19j and S19j Pro miners, with a rear SD card slot for factory or aftermarket firmware.
$61.27
Ships in 5–10 business days
Description
A replacement Antminer control board of the BeagleBone type, model ID S19j Pro Vers: 2.3 (BBLDTCS19JPRO2012), with an SD card slot at the back. It can replace the AMLogic boards with a front micro-USB slot found in some S19j and S19j Pro units, and it can run overclocking and autotuning firmware such as Braiins, Asic.to, Vnish and HiveOS.
Compatibility
- Antminer S19j and S19j Pro (all models)
- Newer Antminer S19 Pro models under 110T with 126 chips per hashboard
Specifications
- Board type: BeagleBone
- Model ID: S19j Pro Vers: 2.3 (BBLDTCS19JPRO2012)
- Card slot: SD, at the back of the board
Notes
- Fitting: remove the miner's upper cover and faceplate, slide out the old board, slide in the new one and refit the faceplate, then reconnect the three 18-pin signal cables, the PSU power extension cable, the voltage-regulating cable and the four fan cables.
- To run Bitmain's factory firmware, install the firmware for the specific S19 model with the SD card method.
