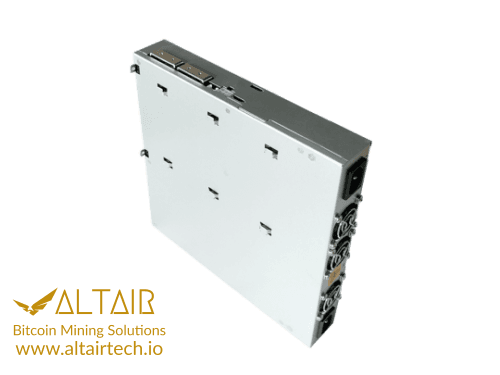

Bitmain Antminer APW9+ PSU for S17e, T17e, S17+, T17+

Replacement power supply made by Bitmain for the Antminer S17+, S17e, T17+ and T17e, which use an all-in-one (built-in) supply. It provides a 14.5–21 V DC main output plus a 12.3 V auxiliary output.

Compatibility

• Antminer S17+, S17e, T17+, T17e

Specifications

• Main output (OUT1): 14.5–21 V DC, 170 A, 3600 W rated (220 V input)
• Auxiliary output (OUT2): 12.3 V DC (12.2–12.4 V), 12 A
• Input: 200–240 V AC, 47–63 Hz; power factor >0.99 at full load; leakage current <1.5 mA
• Protection: output short circuit, overheat, output over-current (180–230 A), low input voltage (80–89 V AC)
• Cooling: forced air; noise 67 dBA
• Dimensions: 249 x 250 x 48.5 mm; weight 3.2 kg
• Operating environment: -20 to 50 °C, 20–90 % RH non-condensing, altitude below 2000 m

Notes

• Installation must be carried out by a qualified electrician to local code.
